Commercial Safes - Strong Room Doors

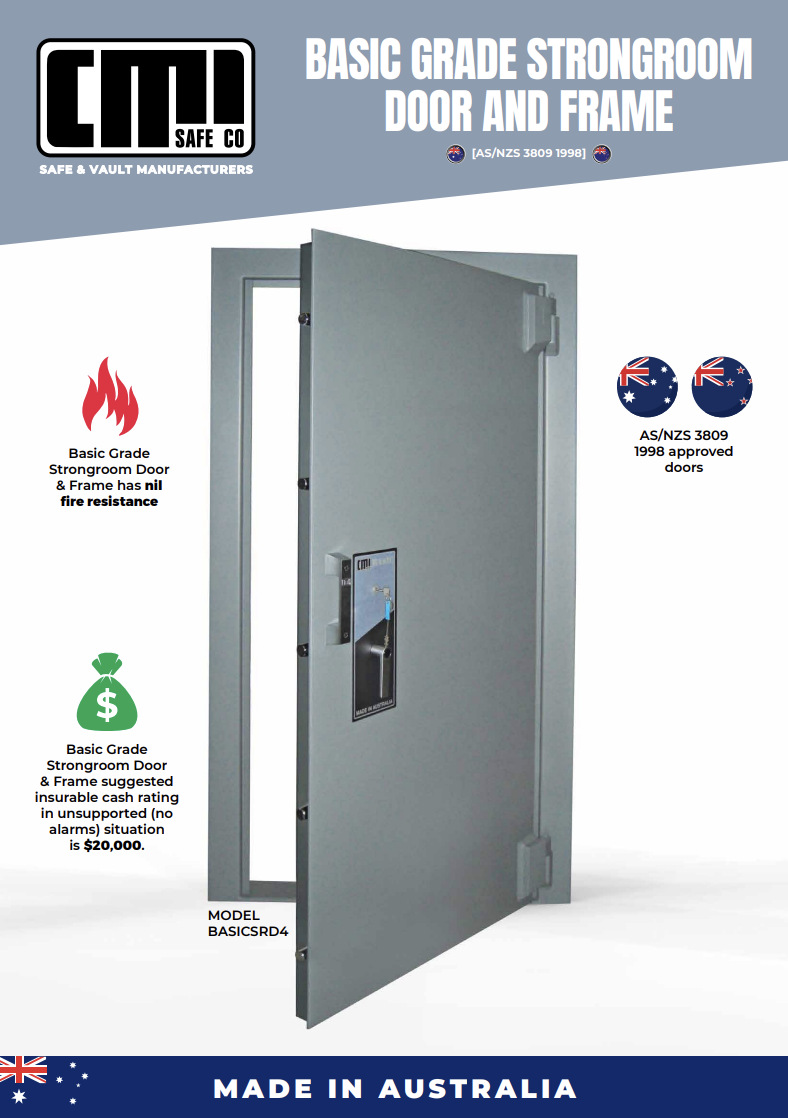

BASIC Grade Strongroom Door & Frame

The “Basic” door provides a 6mm steel front section supported by a single mechanical relocking device
Door - Total thickness 80mm
Boltwork - 32mm diameter bolts of high grade steel provide two-way locking into the specially strengthened lock chamber sections at front and rear edges of the door
Locking - ROSS 700 9 lever pick resistant key lock. Digital combination, duress and time delay locks may be fitted as an optional extra
Frame - Heavy steel 4mm frame with 125 x 12mm threshold plate at bottom
Hinges - Adjustable heavy duty hinges with hardened pins on ball bearing axis (pre-lubricated). Left or right hand hinging
Colour - Etch primer only

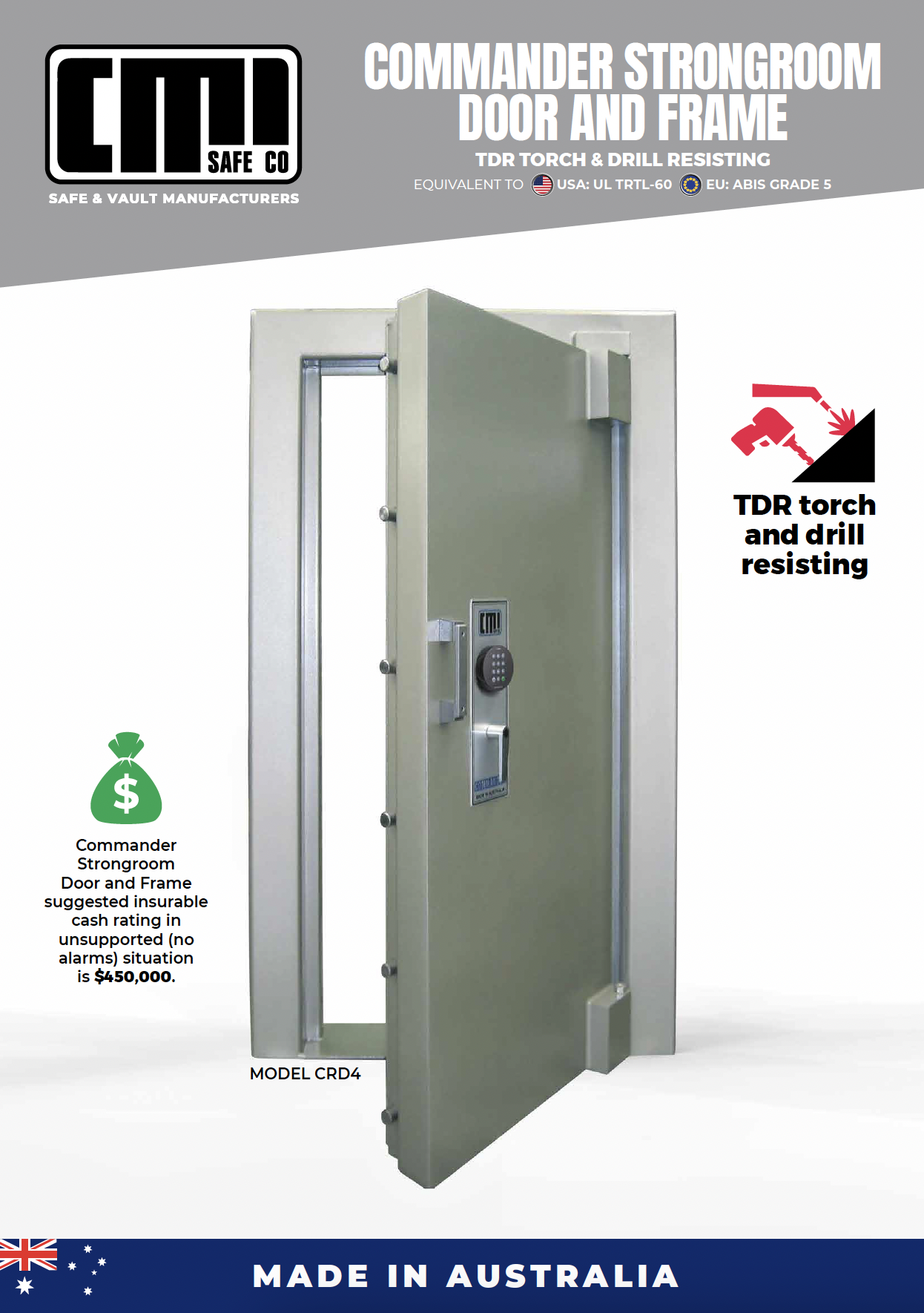

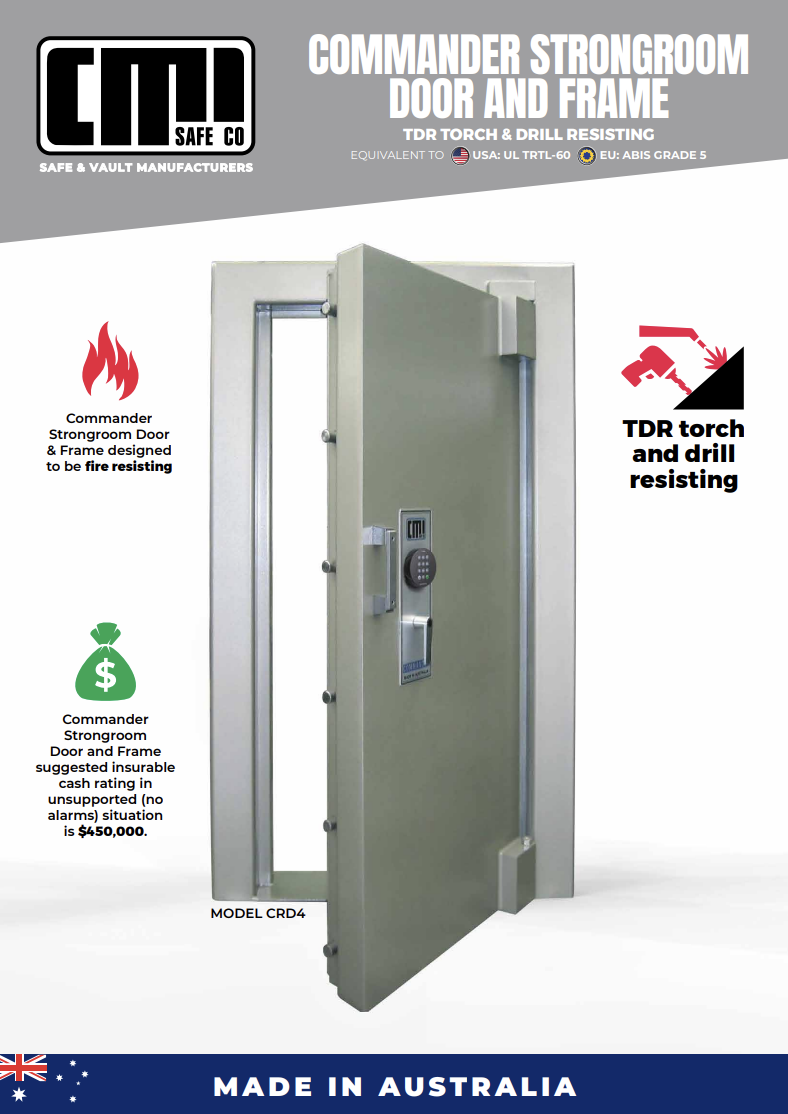

CMI's Commander Strongroom Door and Frame is manufactured with torch and drill resistance
Glass activated relocking devices are provided within the door as standard
Body - Overall door thickness of 180mm including a slab section of 100mm combining a lamination of alloy and refractory material to resist oxy acetylene and drill attack
Locking - each lock can be used independently from the other
- Available in dial combination, key and and digital
- Any chosen electronic or duress alarm system can be added to the door if required
Emergency internal release mechanism fitted as standard
Equivalent to
- USA: UL TRTL-30 x 60
- EU: ABIS Grade 5

Designed and manufactured, supported by drill-resisting hardened plate over all vital lock areas with glass operated relocking devices.
Frame - Heavy steel 6mm x 120mm wide frame with threshold plate at bottom
Hinges - Adjustable heavy duty with hardened pins on ball bearing axis (pre-lubricated)
Door can be ordered with either left or right handed hinging
Locking - available in digital (standard), dial combination, key locking and dual locking
Fire pan fitted to rear of door with approved high fire resisting compound
Custom door & frame can be built to suit specific size requirements
Locking
- available in digital (standard), dial combination, key locking and dual locking
- digital combination, duress and time delay locks may be fitted as an optional extra
Equivalent to
- USA: UL TL-30
- EU: ABIS Grade 2

Frame - Heavy steel 6mm x 120mm wide frame with threshold plate at bottom
Hinges - Adjustable heavy duty with hardened pins on ball bearing axis (pre-lubricated)
Designed to be fire resisting
Door may be ordered with either left or right hand hinging
Custom door & frame can be built to suit specific size requirements
